| Tag | C-Flag Tag |
|---|---|
| Target | |
| Synonyms | BLR1; CD185; MDR15 |
| Description | Human CXCR5 full length protein-synthetic nanodisc |
| Delivery | In Stock |
| Uniprot ID | P32302 |
| Expression Host | HEK293 |
| Protein Families | Druggable Genome, GPCR, Transmembrane |
| Protein Pathways | Chemokine signaling pathway, Cytokine-cytokine receptor interaction |
| Molecular Weight | The human full length CXCR5 protein has a MW of 42.0 kDa |
| Formulation & Reconstitution | Lyophilized from nanodisc solubilization buffer (20 mM Tris-HCl, 150 mM NaCl, pH 8.0). Normally 5% – 8% trehalose is added as protectants before lyophilization. Please see Certificate of Analysis for specific instructions. Do not use solvents with a pH below 6.5 or those containing high concentrations of divalent metal ions (greater than 5 mM) in subsequent experiments. |
| Storage & Shipping | Store at -20°C to -80°C for 12 months in lyophilized form. After reconstitution, if not intended for use within a month, aliquot and store at -80°C (Avoid repeated freezing and thawing). Lyophilized proteins are shipped at ambient temperature. |
| Background | A multi-pass membrane protein that belongs to the CXC chemokine receptor family. It is expressed in mature B-cells and Burkitt's lymphoma. This cytokine receptor binds to B-lymphocyte chemoattractant (BLC), and is involved in B-cell migration into B-cell follicles of spleen and Peyer patches. |
| Usage | Research use only |
| Conjugate | Unconjugated |
Human CXCR5 full length protein-synthetic nanodisc
Price: 10 μg $900.00 ; 50 μg $4400.00 ; 100 μg $8000.00
Product Data
Images

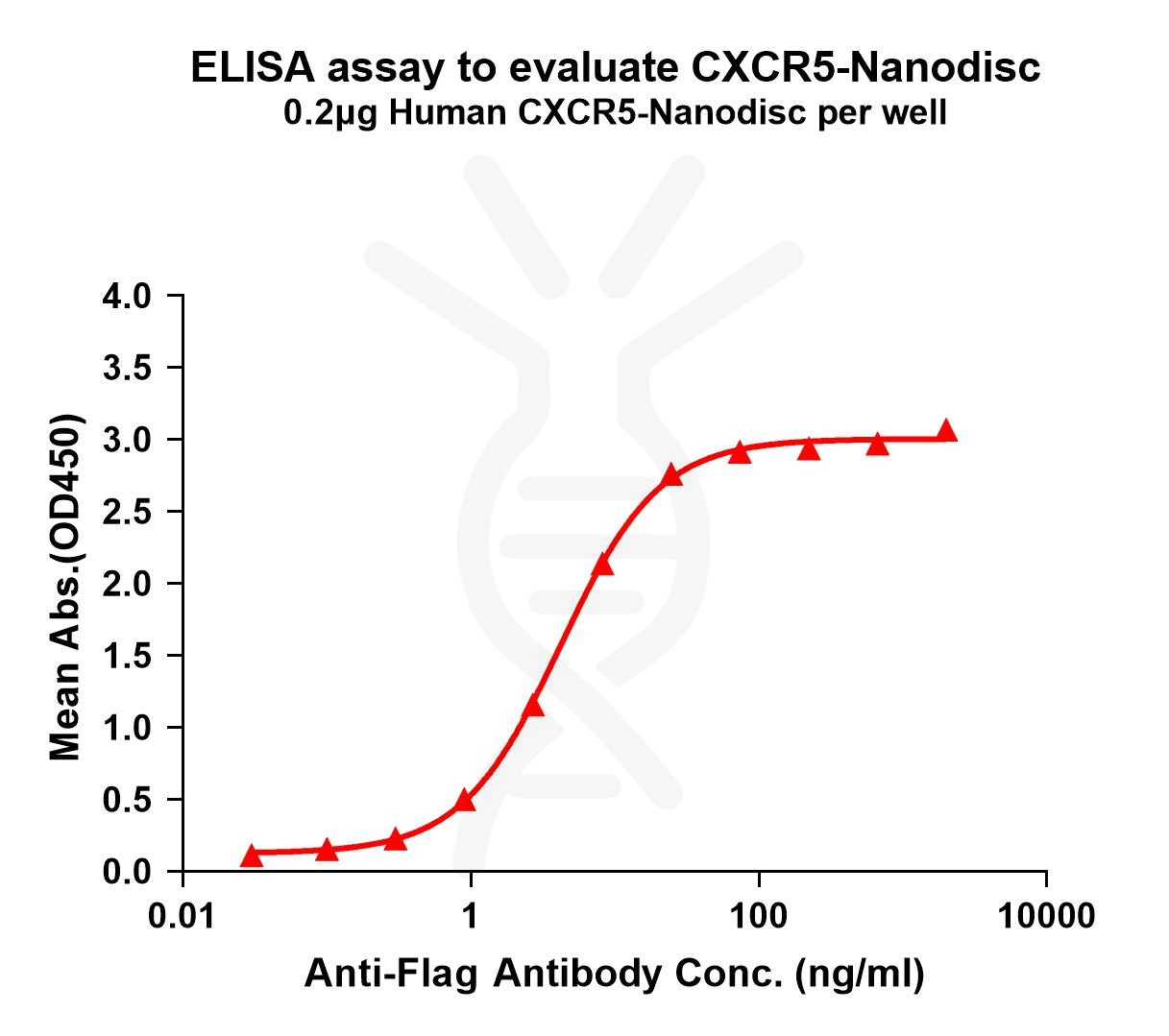

Figure1. Elisa plates were pre-coated with Flag Tag CXCR5-Nanodisc (0.2μg/per well). Serial diluted anti-Flag monoclonal antibody solutions were added, washed, and incubated with secondary antibody before Elisa reading. From above data, the EC50 for anti-Flag monoclonal antibody binding with CXCR5-Nanodisc is 4.190ng/ml.

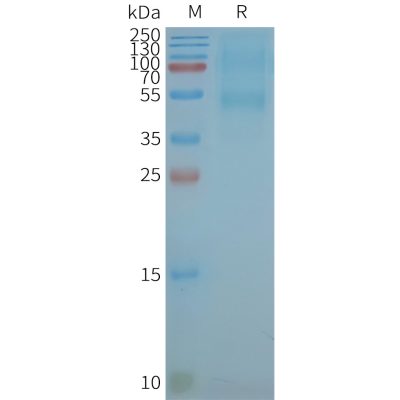

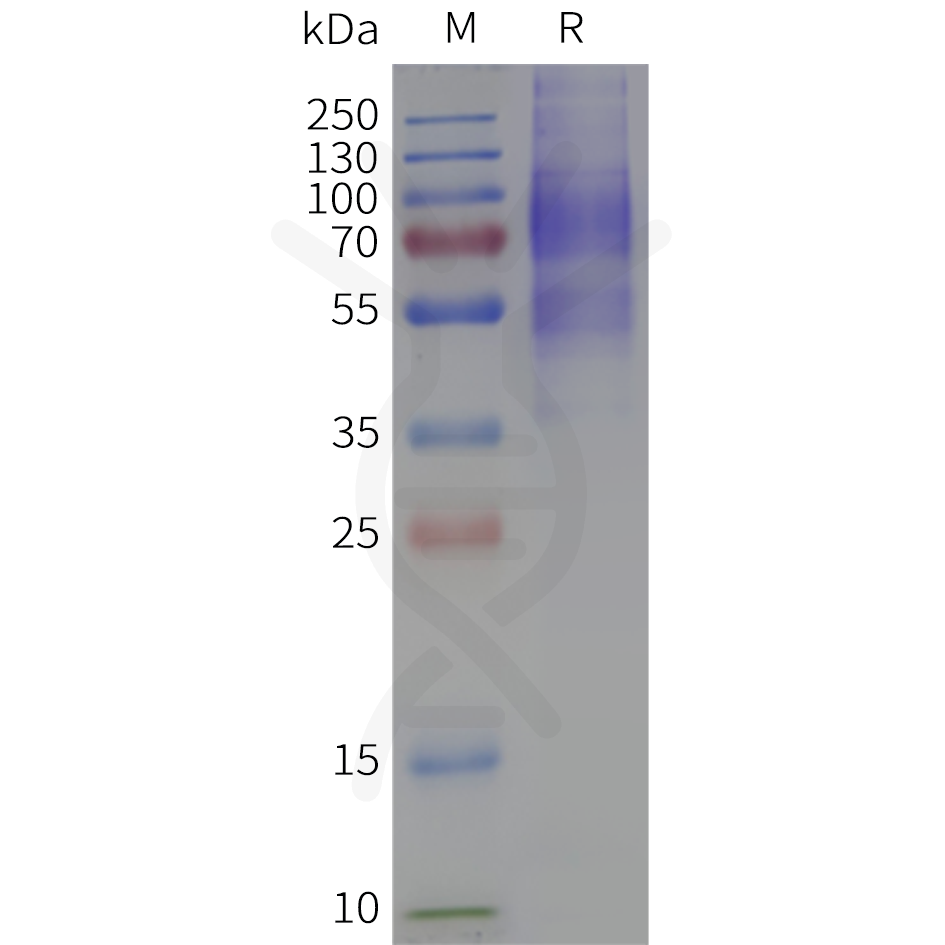

Figure2. Human CXCR5-Nanodisc, Flag Tag on SDS-PAGE
